Specifications

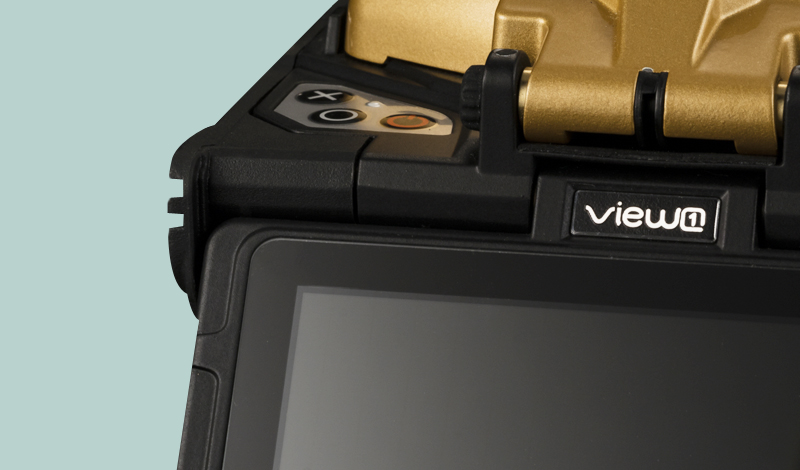

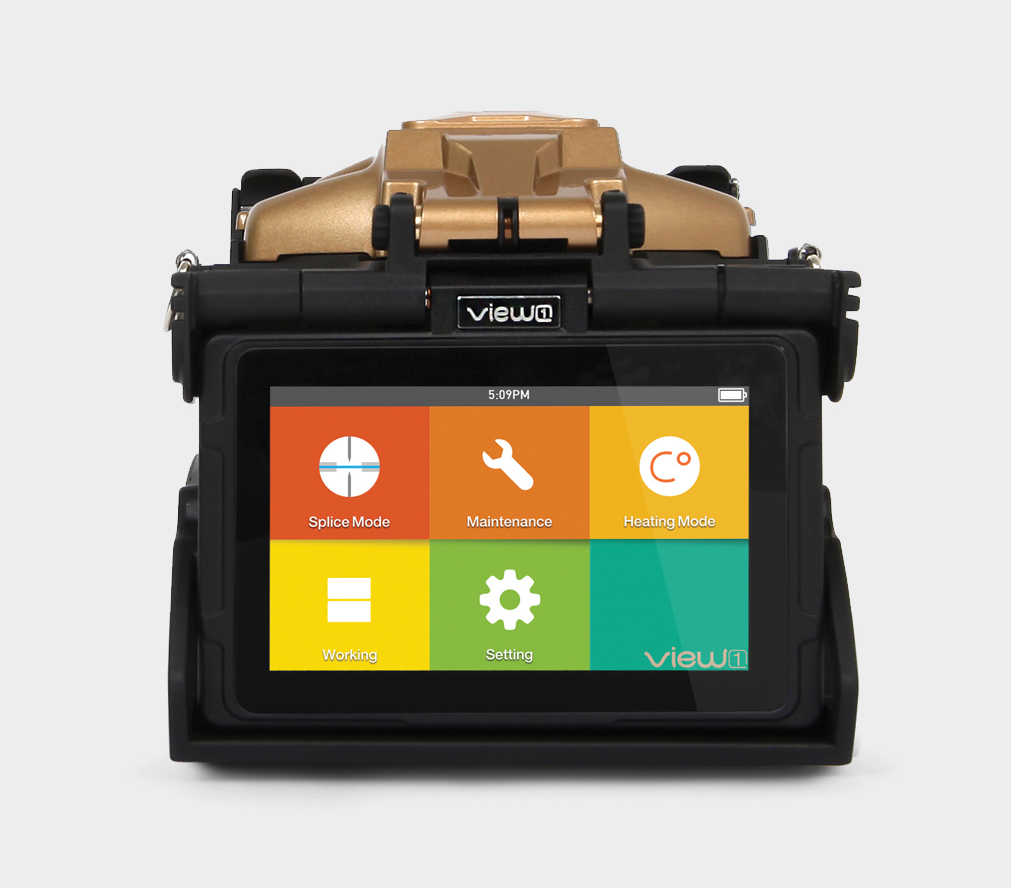

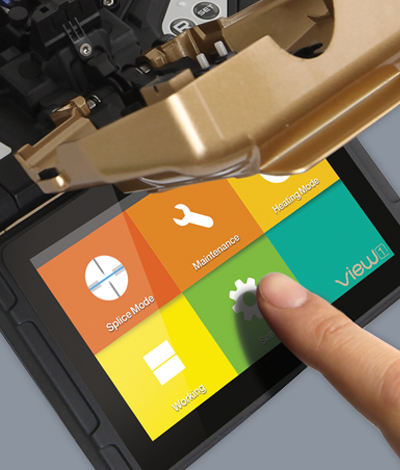

View 1, an active clad-alignment splicer with amazingly compact design, is the most dependable fusion splicer in the market. View 1's 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users.
Specifications
| # | Dummy Content | Detail | # | Dummy Content | Detail |
|---|
| (1) | DIMENSION : | –3.5 dBm |
(2) | WEIGHT : | 1.45KG (without battery) / 1.70KG (with battery) |
| (3) | DISPLAY : | Touch Screen / Butto |
(4) | NUMBER OF FIBER : | 1 |
| (5) | SPLICING TIME : | 7sec , 9sec |
(6) | HEATING TIME : | 13sec Typical heating time |
| (7) | FIBER VIEW & MAGNIFICATION : | X ,Y ,XY ,X/Y , 520X Magnification |
(8) | APPLICABLE FIBERS : | SM (ITU-T G.652&G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
| (9) | RESULT STORAGE : | The last 10,000 results |
(10) | TERMINAL : | Micro HDMI |
| (11) | COMPATIBLE FIBER / CABLE : | 0.25~3.0mm/Indoor Cable(with VFH-40) |
(12) | CLEAVED LENGTH : | Diameter:0.125~1mm/Cleave Length:8~16mm |
| (13) | CLADDING DIAMETER
: | 80~150㎛ |
(14) | SPLICING MODE
: | MAX120 modes |
| (15) | HEATING MODE
: | MAX33 modes |
(16) | TYPICAL SPLICE LOSS
: | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard) |
| (17) | RETURN LOSS
: | >>60dB |
(18) | ESTIMATED SPLICE LOSS
: | Available |
| (17) | STORAGE CONDITION
: | 0~95% relative humidity, -40~80℃ |
(18) | POWER SUPPLY
: | AC Input 100-240V, DC Input 9-14V |
