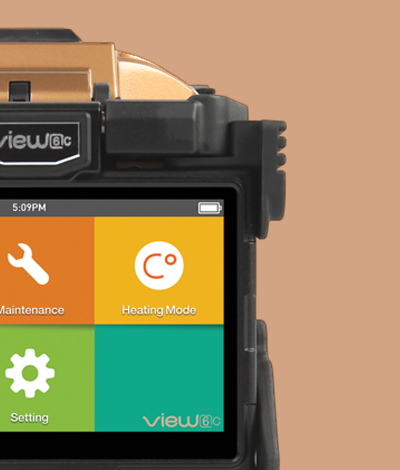

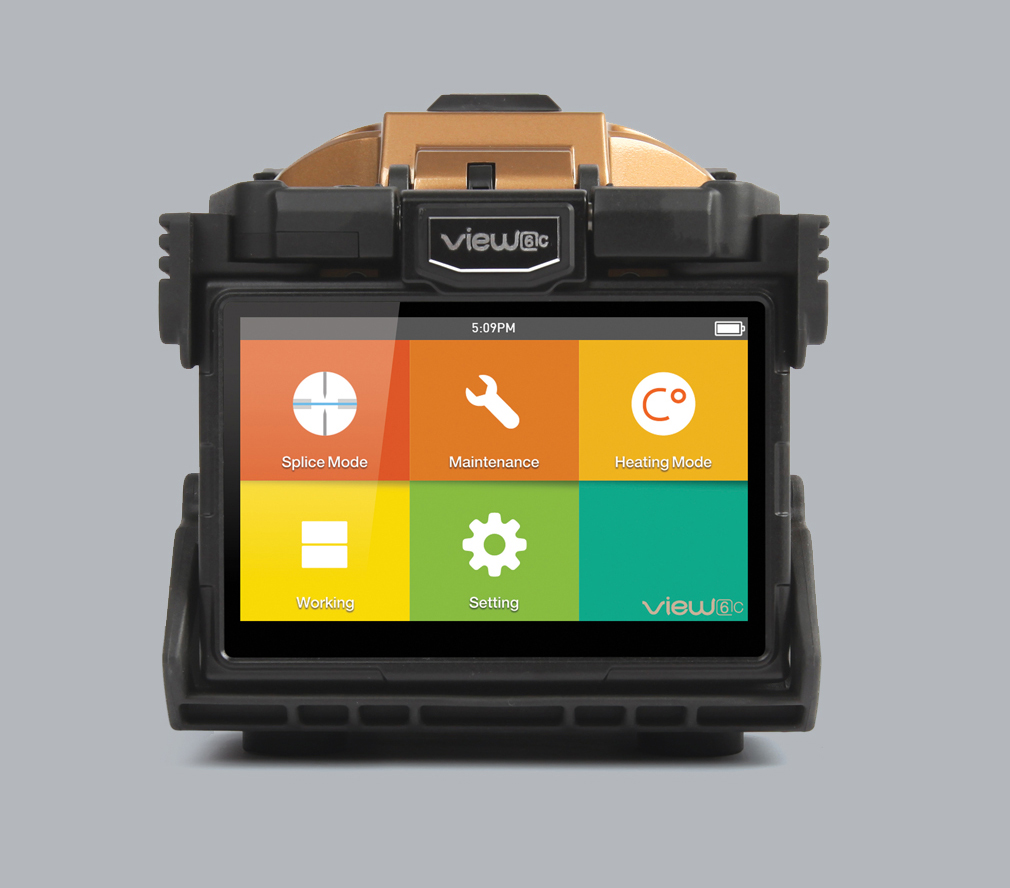

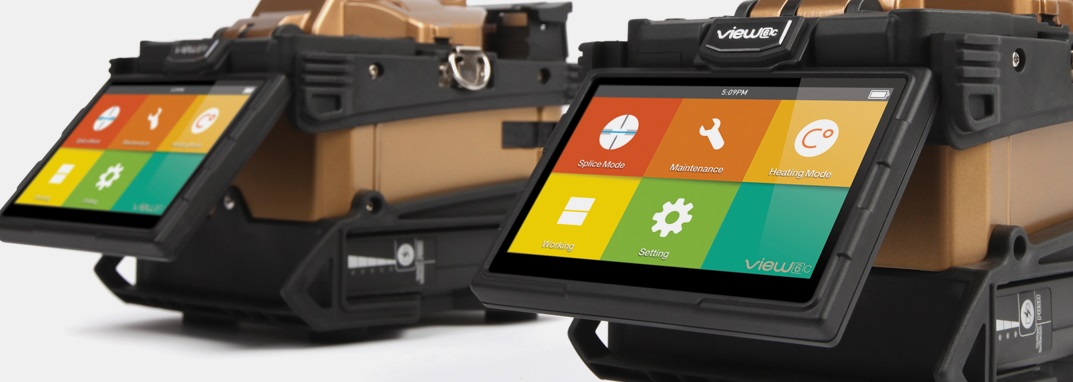

View 6C, an active clad-alignment splicer with the world's highest fiber image magnification rate, is the exclusive fusion splicer presented only to main telecommunications operators. View 6C's 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users.

# Dummy ContentDetail# Dummy ContentDetail
(1)DIMENSION : 143H X 130W X 155D mm (excluding rubber bumper) / 152H X 147W X 175D mm (including rubber bumper) (2)WEIGHT : 1.85KG (without battery) / 2.31KG (with battery)
(3)DISPLAY : Touch Screen / Button (4)NUMBER OF FIBER : 1
(5)SPLICING TIME : 7sec , 9sec (6)HEATING TIME : 13sec Typical heating time
(7)FIBER VIEW & MAGNIFICATION : X ,Y ,XY ,X/Y , 520X Magnification (8)APPLICABLE FIBERS : SM (ITU-T G.652&G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655)
(9)RESULT STORAGE : The last 2,000 splice records and last 2,000 splice result images (10)TERMINAL : USB 2.0 /MINI USB
(11)COMPATIBLE FIBER / CABLE : 0.25~3.0mm/Indoor Cable(with VFH-40) (12)CLEAVED LENGTH : Diameter:0.125~1mm/Cleave Length:5~16m
(13)CLADDING DIAMETER : 80~150㎛ (14)SPLICING MODE : MAX128 modes
(15)HEATING MODE : MAX32 modes (16)TYPICAL SPLICE LOSS : SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB(ITU-T Standard)
(17)RETURN LOSS : >>60dB (18)ESTIMATED SPLICE LOSS : Available
(17)STORAGE CONDITION : 0~95% relative humidity, -40~80℃ (18) POWER SUPPLY : AC Input 100-240V, DC Input 9-14V
